The first whole-house humidifier I ever pulled off a furnace had been running dry for two winters. The homeowner had bought a big steam model because a forum told him steam was best, but his 1,400 square foot ranch never needed that much moisture, and the extra water just rusted the plenum. He spent about $600 more than he needed to and got a rustier furnace for it.
That is the whole game with these units. Picking the right type matters more than picking the priciest one.
This whole house humidifier buying guide walks through the three families you will actually shop: bypass, fan-powered, and steam. All three mount on your furnace or ductwork and treat the whole house through the existing vents. Installation is its own topic, so here we stick to choosing the right one.
The three types, in plain terms
Every furnace-mounted humidifier does the same job: it adds water vapor to the warm air your system is already pushing around. What separates them is how they get the water into the air and whether they lean on your furnace to do it.
Bypass humidifiers
A bypass unit taps warm air from the supply duct, routes it through a wet evaporator pad, and sends the now-humidified air back into the return. It has no motor of its own. It borrows the furnace blower.
That makes it cheap, quiet, and simple, usually $100 to $250 for the unit. The catch is that it only humidifies while your furnace fan is running, and it needs a bypass duct connecting supply to return.
Fan-powered humidifiers
A fan-powered unit is a bypass design with its own small blower bolted on. That fan pushes air through the pad instead of relying on furnace pressure, so it produces more moisture from the same footprint and can run even when the furnace is only circulating.
Expect $150 to $350 for the unit. They are a smart middle choice for homes where a plain bypass falls a little short.
Steam humidifiers
A steam unit boils water in its own canister and injects actual steam into the ductwork. It does not depend on furnace heat at all, which is why it is the only type that pairs cleanly with a heat pump or a home that runs the fan without heating.
Units run $300 to $800, sometimes more with a pro-grade controller. They put out the most moisture and the most consistent humidity, and they cost the most to run.
The best whole-house humidifier is the smallest one that comfortably covers your square footage in your climate. Oversizing is how plenums rust.
How they stack up side by side
Capacity is measured in gallons per day (GPD): how much water the unit can turn into vapor in 24 hours. More GPD means it can hold humidity in a bigger or leakier house. Here is the honest comparison.
| Feature | Bypass | Fan-powered | Steam |
|---|---|---|---|
| Unit price | $100-$250 | $150-$350 | $300-$800 |
| Typical output | 12-17 GPD | 17-18 GPD | up to 34 GPD |
| Home size it suits | up to ~3,000 sq ft | up to ~4,000 sq ft | 4,000+ sq ft |
| Runs when furnace is off? | No | Yes, fan only | Yes |
| Works with a heat pump? | Poorly | Poorly | Yes |
| Water and energy use | Lowest | Low | Highest |
Those GPD ranges are typical residential figures. Manufacturers publish charts that assume tight, average-humidity homes, so a drafty 1970s house effectively needs a size up.
Estimate 12 GPD for up to 2,000 sq ft, 17-18 GPD for 2,000-3,600 sq ft, and step up to steam past that. Add a size if your home is old, drafty, or you live somewhere with brutal single-digit winter humidity.
Match the type to your HVAC, not just your house
Square footage is only half the decision. The other half is what kind of heating system you have, because two of these three types depend on it.
If you have a standard gas or oil forced-air furnace, all three are on the table. That is the easy case, and most homes land here.
If you heat with a heat pump, the supply air is cooler, often too cool to evaporate water off a pad efficiently. Bypass and fan-powered units limp along at best. Steam is the type built for you because it makes its own heat.
If you have no ductwork at all, say a boiler with radiators, none of these apply. That is a portable or console humidifier situation, which is a different conversation covered in our Humidifier Buying Guide: What Actually Matters.
Every furnace-mounted humidifier needs somewhere for water to go. Bypass and fan-powered units drip a little waste water, and steam units drain hot water. If your furnace sits far from a floor drain, you may need a condensate pump, which adds cost and one more thing that can fail.
Which one to pick for your situation
Here is how I would steer people based on the homes I have actually worked on.
- Small to mid-size home, gas furnace, tight budget: a bypass unit. It is the quietest and the cheapest to own, and for a well-sealed 1,800 square foot house it is plenty.
- Mid-size home that never quite hit target humidity with a bypass: a fan-powered unit. The extra blower is often the difference between 32 and 38 percent relative humidity in January.
- Large home, open floor plan, or a heat pump: steam. It is the only type that keeps a 4,000 square foot house comfortable and the only one that behaves with a heat pump.
- You run the furnace fan year-round for air filtering: fan-powered or steam, since both can humidify without a heat call.
One more practical filter. Bypass and fan-powered units use a replaceable evaporator pad you swap once or twice a season for around $10-$20. Steam units use a boiling canister that needs periodic replacement and more careful maintenance, especially in hard-water areas. If low fuss is a priority, that tilts things toward the simpler pad units.
Where the running cost hides
The sticker price is the small number. Over a decade, water, electricity, and consumables matter more, and this is where steam earns its reputation as the expensive one.
A steam unit uses real electricity to boil water, so it can add a few dollars a day during a cold snap. Bypass units, by contrast, sip water and add almost nothing to your power bill because they piggyback on a fan that was already spinning. If you want the full picture on operating costs, our Humidifier Running Cost Breakdown gets into the per-season math.
Right-sizing helps here too. Dialing your humidistat to a sane target keeps any unit from overworking. The EPA indoor air quality pages and the Department of Energy Energy Saver both point to keeping indoor relative humidity in a moderate band, and staying near the low end of that band saves water and protects your windows from condensation.

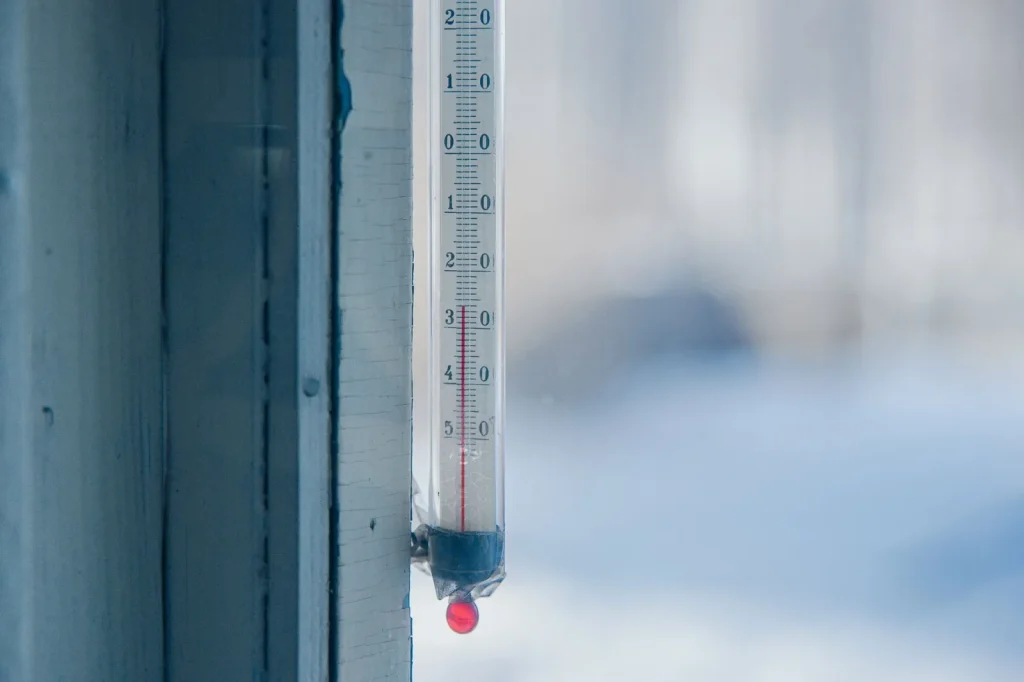

Set your humidistat around 35 percent in winter and drop it as the outdoor temperature falls. When you see fog or frost forming on the inside of your windows, that is the house telling you to turn it down a notch.
Making the call
Start with your heat source. Heat pump or ductless means steam or nothing. Then size to your square footage and how leaky the house is, and only then let budget break the tie between bypass and fan-powered.
For most gas-heated homes under 3,000 square feet, a bypass or fan-powered unit in the $150-$300 range is the right answer, and the money you save over steam is better spent on a decent humidistat. Measure your winter humidity for a week with a $15 hygrometer before you buy anything. That single reading tells you more about what you need than any spec sheet will.
Frequently asked questions
How many gallons per day do I actually need?
Use square footage as your starting point. Around 12 GPD covers homes up to 2,000 square feet, 17 to 18 GPD suits 2,000 to 3,600 square feet, and larger homes usually need a steam unit rated higher. Bump up a size if your house is old, drafty, or your winter air is very dry, since those homes lose humidity faster than the rating chart assumes.
Can I put a bypass or fan-powered humidifier on a heat pump?
It works poorly. Heat pumps deliver cooler supply air than a gas furnace, and pad-style units rely on warm air to evaporate water. You get weak output and inconsistent humidity. Steam is the type built for heat pumps because it boils its own water and does not need furnace heat to make vapor, so it is the reliable choice there.
Is a fan-powered unit worth the extra money over a bypass?
Often, yes. A fan-powered unit outputs roughly 30 to 40 percent more moisture from a similar footprint and can run when the furnace is only circulating air. If a plain bypass would leave you short of your target humidity, or you run the fan year-round for filtering, the extra $50 to $100 usually pays off in comfort.
Do whole-house humidifiers need a drain?
Most do. Bypass and fan-powered units send a small amount of waste water to a drain, and steam units drain hot water from their canister. If your furnace is not near a floor drain, you may need a condensate pump to move the water, which adds cost and a part that can eventually fail. Check drain access before you choose a unit.
Which type is cheapest to run over time?
Bypass units are the least expensive to operate. They use no electricity of their own and only a modest amount of water because they rely on the furnace blower that is already running. Steam units cost the most because they use real electricity to boil water, which can add a few dollars a day during a cold stretch. Fan-powered units land in between.
How often do I replace parts on these units?
Bypass and fan-powered units use an evaporator pad you swap once or twice per heating season for about $10 to $20. Steam units use a boiling canister that needs periodic replacement and more attention, especially where water is hard and minerals build up fast. If you want the lowest maintenance, the pad-style units are the simpler pick.
